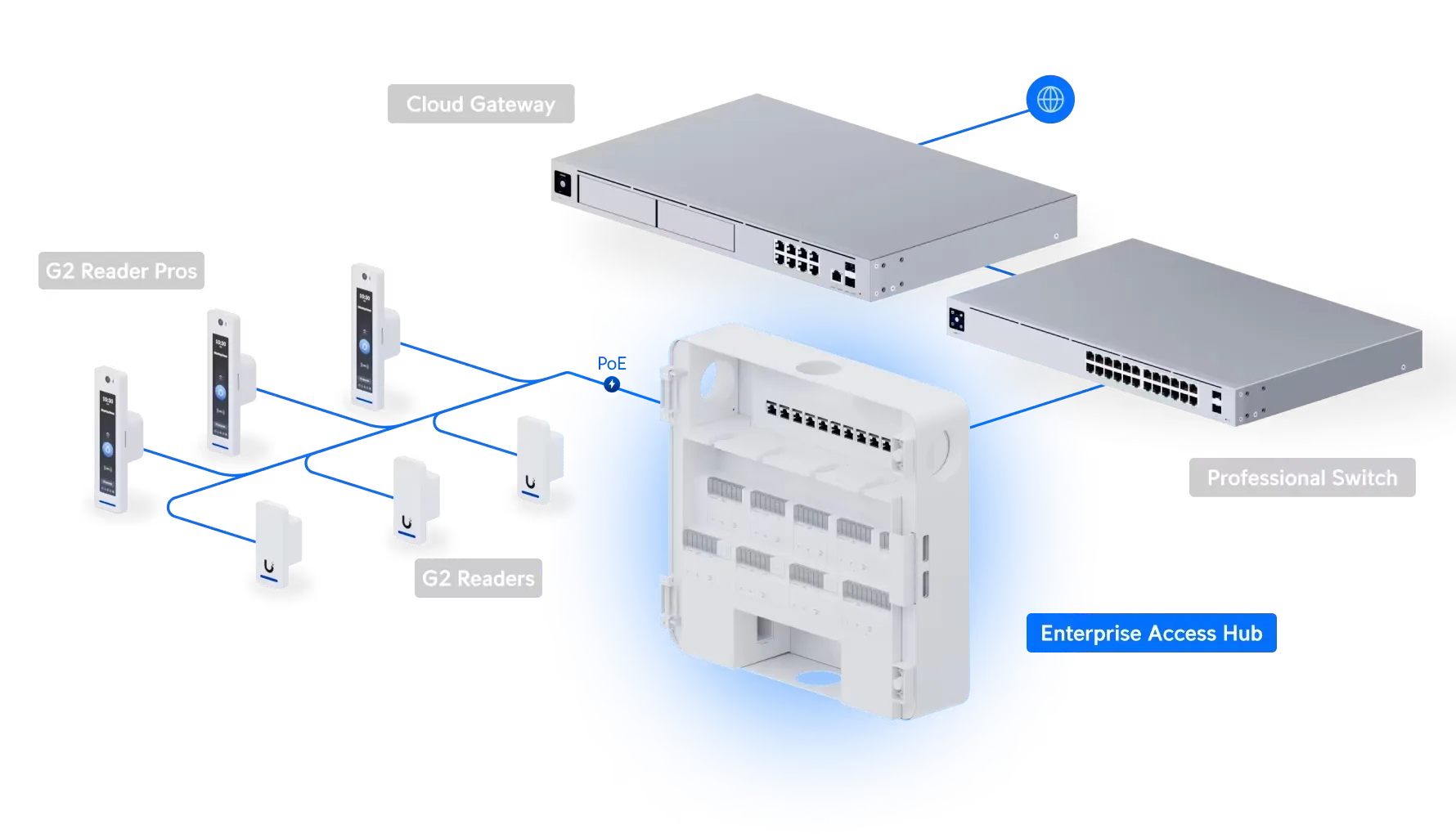

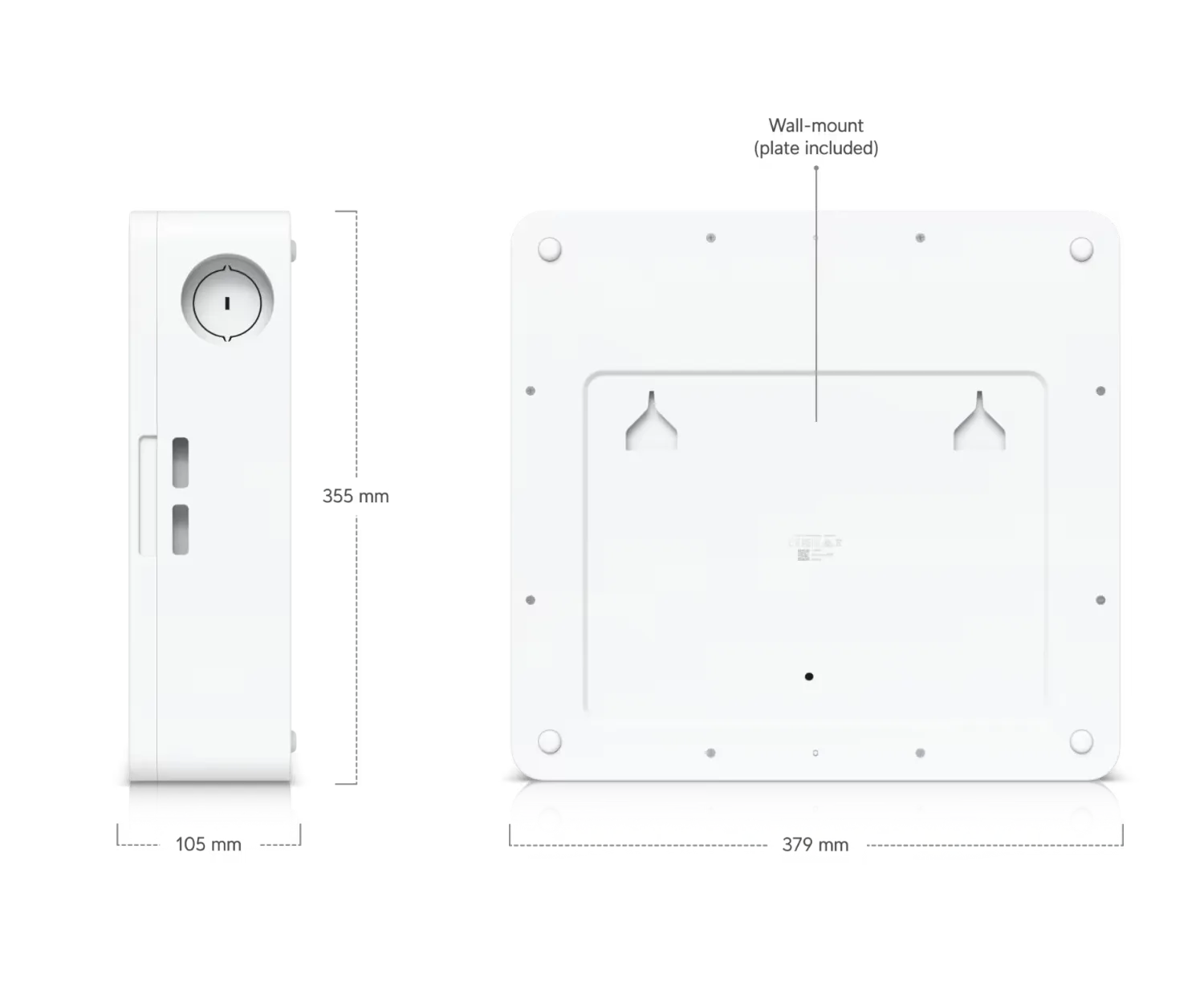

Device: 9.1 kg (20 lb)
Mount: 624 g (1.4 lb)

SGCC steel housing with polycarbonate cover

SGCC steel

Wall

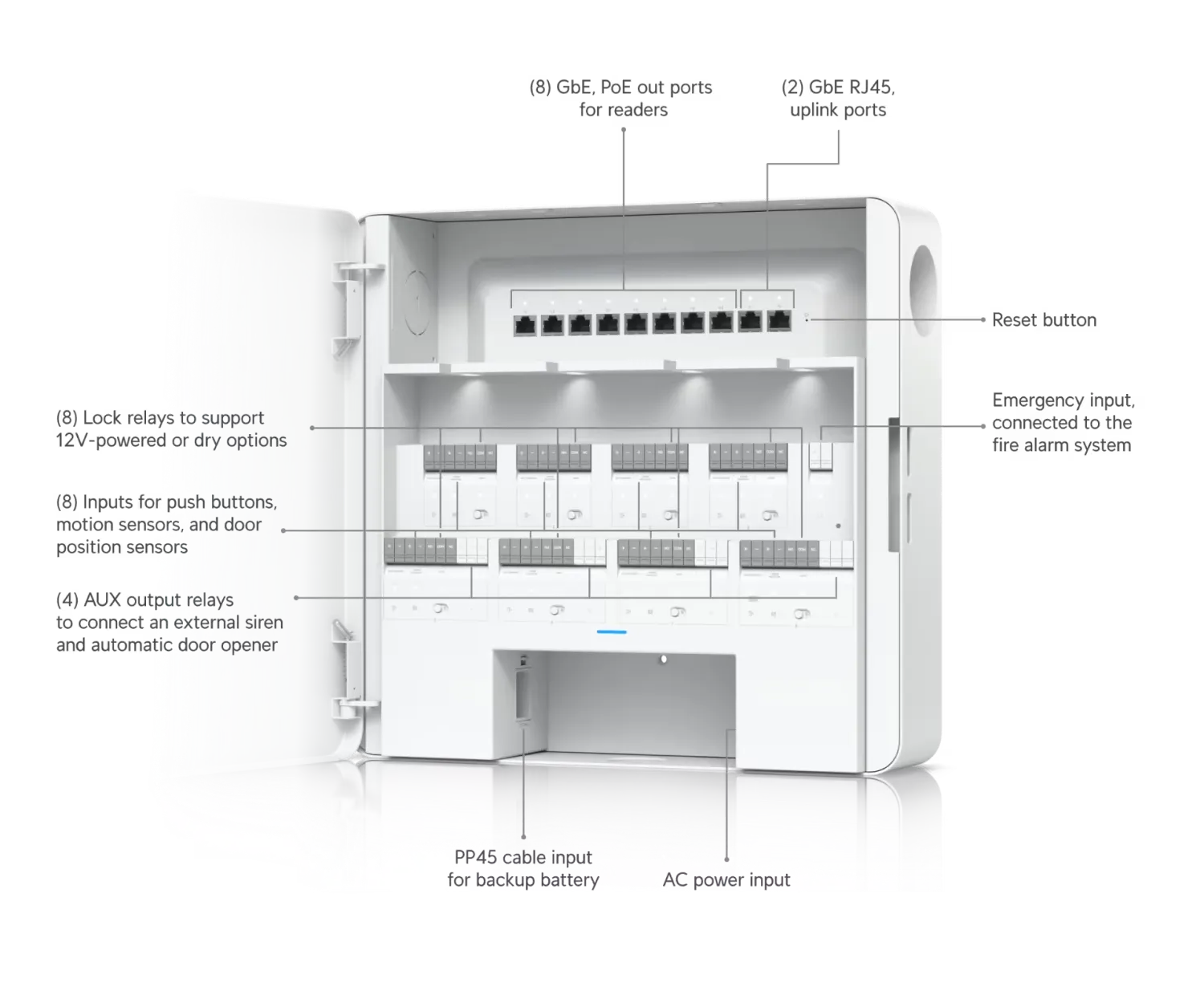

(8) Inputs for request-to-exit devices
(8) Inputs for door position sensors
(1) Emergency

(8) Lock terminals (12V or Dry)
(4) AUX terminals for advanced setup (Chime/Siren/Door opener)

Lock: 12V DC, 1A/ Dry
Aux: Dry only

Indoor only

0 to 40° C (32 to 104° F)

5 to 95% noncondensing

(10) 10/100/1000 Base-T

(8) PoE+ outputs, 50V DC, 30W per port
(Max 60W aggregated)

AC/DC, internal

240W

30W

W/B

(1) Factory-reset

UA-Lock-Electric (400mA)
24 AWG length: 25 m (82 ft)
22 AWG length: 42 m (138 ft)
20 AWG length: 66 m (217 ft)
18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

UA-Lock-Magnetic-540kg (500mA)
24 AWG length: 20 m (66 ft)
22 AWG length: 32 m (105 ft)
20 AWG length: 51 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)

UA-Lock-Magnetic-270kg (800mA)
24 AWG length: 12 m (29 ft)
22 AWG length: 20 m (98 ft)
20 AWG length: 30 m (167 ft)
18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Other locks (1A)
24 AWG length: 9 m (30 ft)
22 AWG length: 15 m (49 ft)
20 AWG length: 24 m (79 ft)
18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Cable 5e cabling is the minimum performance category recommended. The performance category utilised should match the transmission speed required at the installation site.

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.

The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

Grade assignment: I

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

EAH-8, Ver 01

Access

The software version can be checked at https://unifi.ui.com
